Rustic dark heather

Dreadnought's dark heather colour is a predominantly blue colour with subtle shade variations of lighter blue and purple hues. These natural clay colours are derived by controlling the kiln atmosphere which converts the iron content of the clay to shades of blue and purple. Other manufacturers use applied stains and coloured sands to produce their colour, but at Dreadnought we believe in the beauty of true clay colour, achieved through careful control of the kiln atmosphere.

These tiles are an ideal choice where a sanded tile with some surface texture is required.

Case Studies

Lovedon Fields 50 houses on the edge of the South Downs National Park

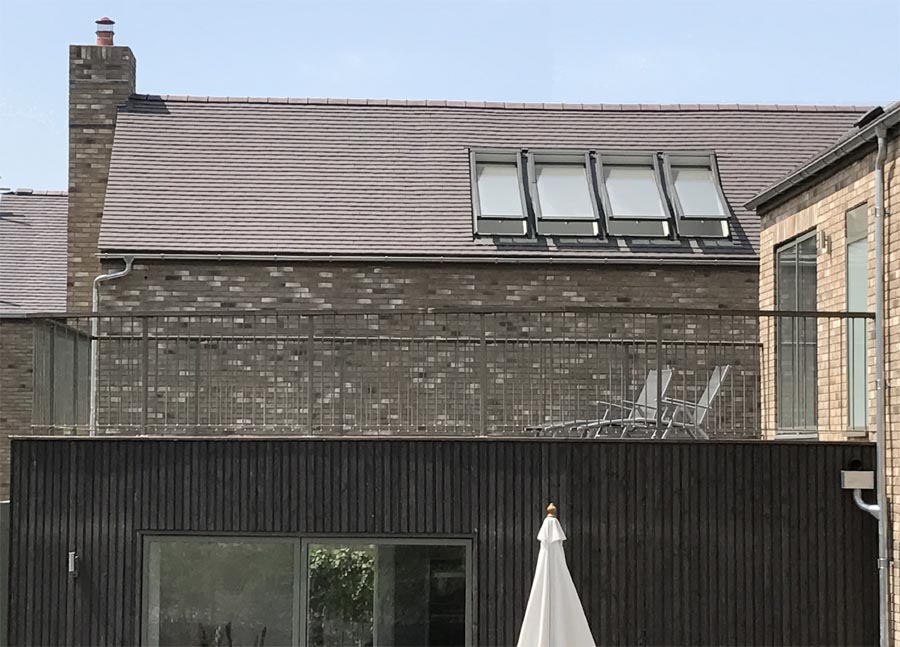

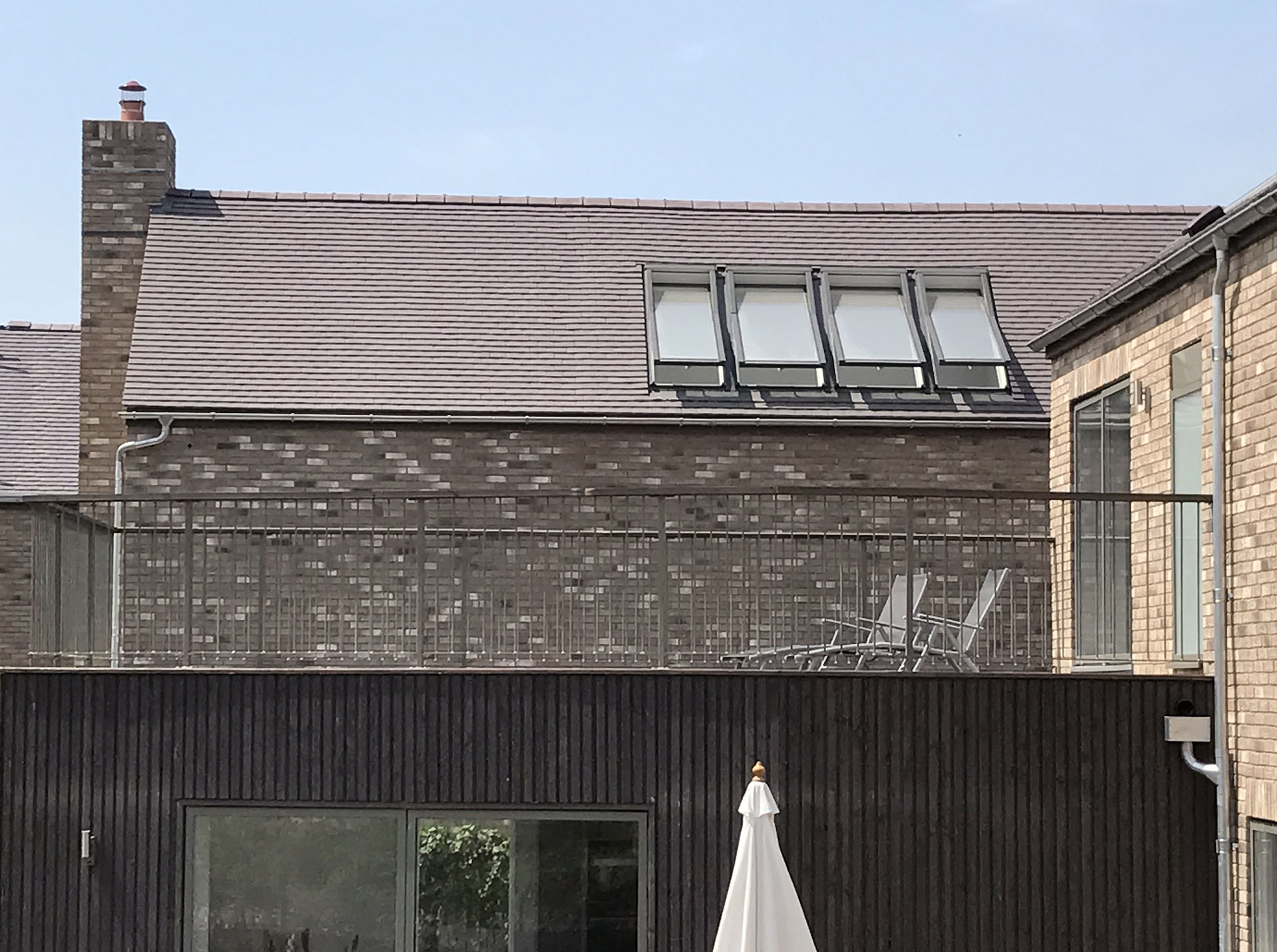

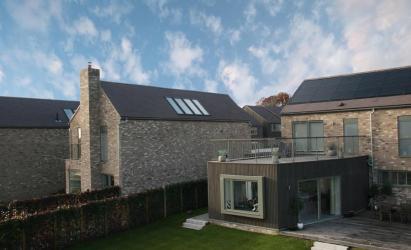

Dark heather rustic tiles at Lovedon Fields near Winchester Lovedon Fields 3

Just 2 miles from Winchester and on the edge of the South Downs National Park, this new development, winner of RIBA South Award 2022, needed to look modern and contemporary, but blend in with the sites beautiful rural surroundings. The selection of building materials was key to achieving this and rather than opting for red brick, typical of much of the new housing in the area, the design team opted for more mellow brown and buff brick to match the surrounding grass, hills and earth. Dreadnought's dark heather rustic roof tiles tone well with this subtle pallette of natural materials and their rustic texture suit the countryside location well. They also tone well with the solar panels, ensuring the panels do not dominate the appearance of the roofs while providing all the benefits of sustainability. Full details

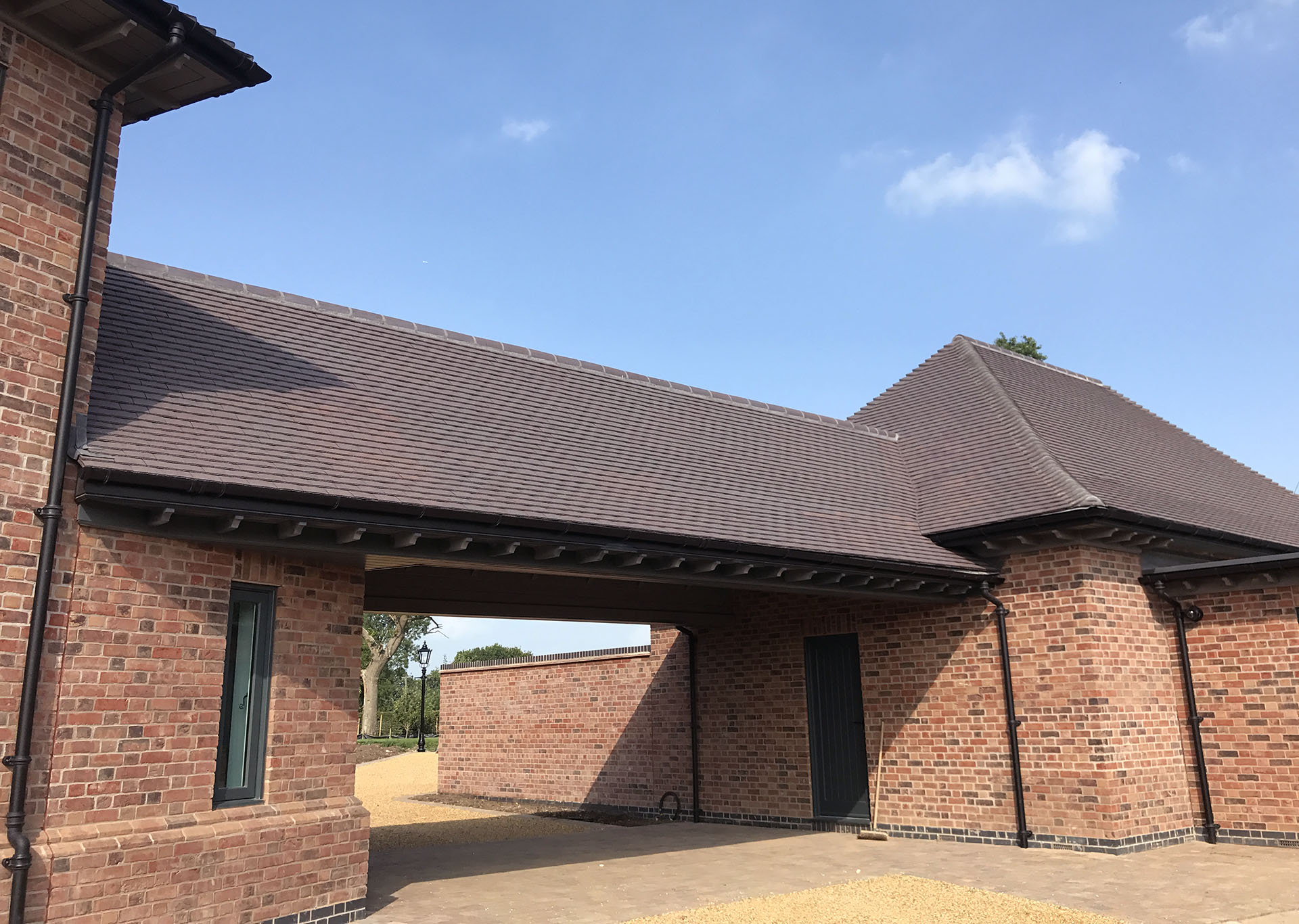

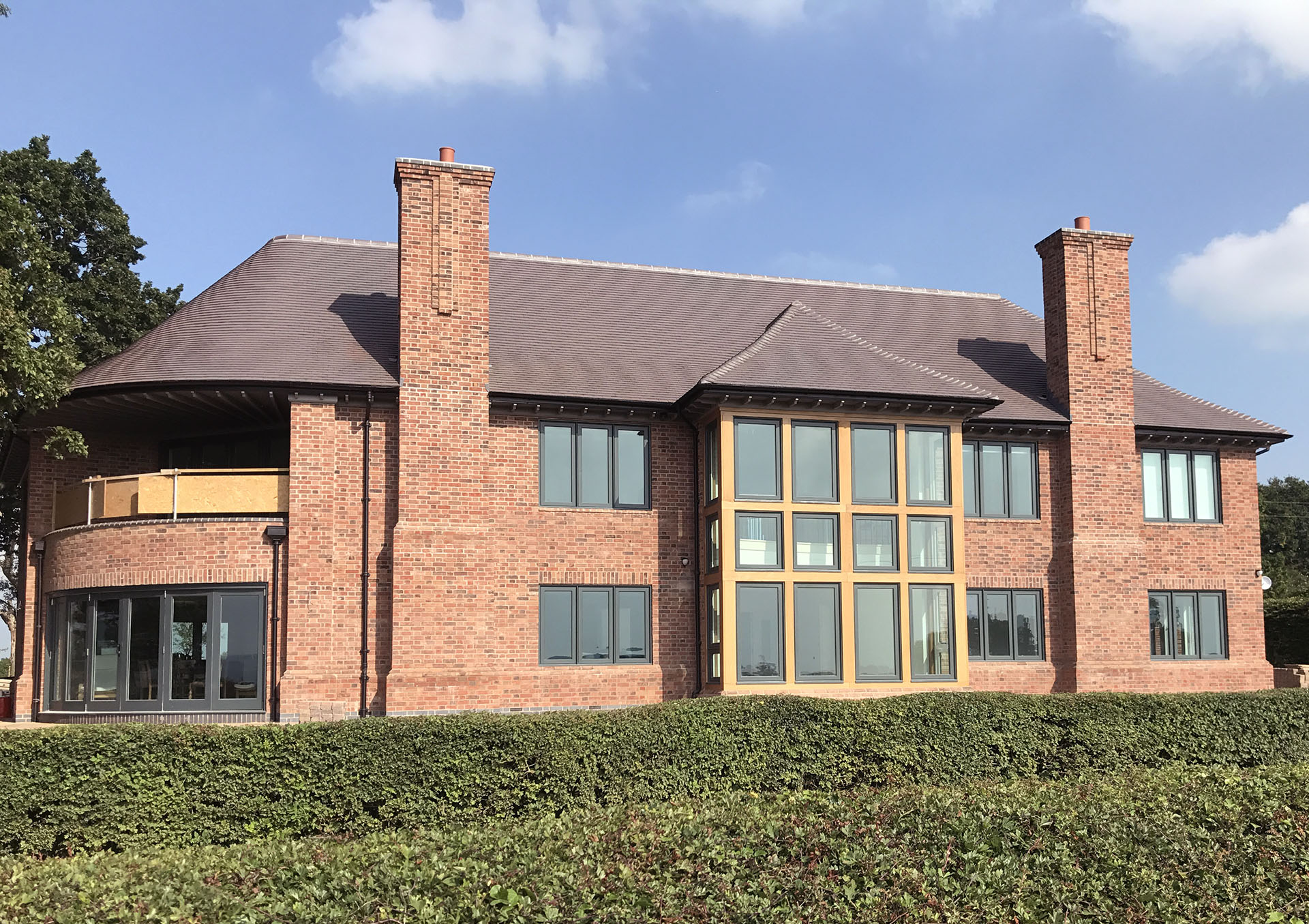

Beautiful self build project nr Derby

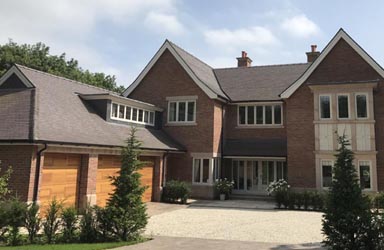

Dark heather 1 Dark heather 2

When it came to selecting materials for her self build project, Stephanie Snookes knew she wanted to use natural products. She had been fortunate to secure the perfect plot in a highly desirable village near to Derby and was keen to create as high quality a build as her budget would allow. The Dark Heather rustic tile blends beautfully with the multicoloured bricks and have contributed to a home with significant "wow factor". Full details

Technical Info

Dreadnought Tiles conform to BS EN 1304:2013 and should be fixed in accordance with BS 5534 "Slating and Tiling" part 1 & 2 and BS 8000 Part 6.
Frozen-Icon2 web Freeze Thaw Standards require plain clay tiles for use in the U.K. to withstand at least 150 freeze / thaw cycles under method E of European Standard EN 539-2:2013. At Dreadnought Tiles we regard this as too low for our climate and we therefore test our tiles to withstand in excess of 400 cycles.

Download Freeze Thaw Testing Report

Download this info as a pdf

Download Specification sheet as a word doc

	Tiles	Eaves	Gable
Size	265x 165 mm	215x 165 mm	265 x 248 mm
Weight	1.19 kg	0.95 kg	1.8 kg
Pattern	Traditional Single Camber
Material	Etruria Marl	Etruria Marl	Etruria Marl

	Pitched Roofs	Vertical
Minimum Lap	65 mm	32 mm
Maximum Gauge	100 mm	115 mm
Minimum Gauge	88mm	88mm
Approx Weight at Maximum Gauge	71 kg/m²	63 kg/m²
Nails	38 x 2.65 mm alloy	38 x 2.65 mm alloy
Battens	38 x 25 mm	38 x 25 mm
Minimum Pitch	35 degree

Quantity Guide

Tiles @ 100mm Gauge	60m²
115mm Gauge	53m²
Eaves/Tops	6/lineal metre
Gable (Tile and Half)	5/lineal metre of verge
Hips and Valleys	10/lineal metre of main rafter
Ridges	Supplied in 300 mm and 450 mm lengths

Relevant Fixing Standards

BS 5534 2014	Code of Practice for Slating and Tiling
BS 8000-6.2013	Workmanship on Building Sites
BS EN 1991-1-4:2005+A1:2010	UK National Annex to Eurocode 1 -Actions on Structures - Part 1-4: General actions - wind actions

Environmental Info

Place of Manufacture: Brierley Hill, UK
Environmental Management: ISO 14001 Download Certificate
Quality Management: ISO 9001 Download Certificate
Life Cycle: BRE 'A+' rating
Freeze Thaw Testing to in excess of 400 cycles Download Freeze Thaw Test Certificate >>
Energy: Fired in gas kilns to 1130 degrees
Raw materials: Etruria Marl Clay from our local quarry in Brierley Hill, sand
Lifespan: > 60 years. Second hand tiles that have been on roofs in excess of 100 years often sell for more than new tiles on the 2nd hand market
Recyclability: Can be crushed and used as aggregate and/or as an inert bulk fill
Packaging: We keep packaging to a minimum using wooden pallets. We do not shrink wrap or use plastic straps.

Find out more about Dreadnought Tiles approach to sustainability

Download our Quality and Environmental Policy
